| Picture |
Mechanical drawing |
Model |
Features |
Application |
Height(H) |
Output Power
(Typical value) |
Input voltage
(Typical value) |
Output voltage
(Typical value) |
 |
 |

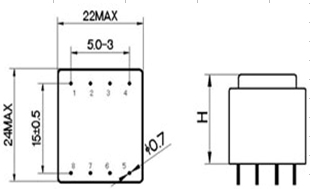

ALET24-22A |
●UL94V-0 flame retardant material
●Vacuum encapsulated
●Shockproof moisture proof and high dielectric strength |
●Household electric appliance
●Instruments and meters
●Traco power |
15 |
0.3～0.4VA |
115V
220V
230V |
6V 9V 12V
6V×2 9V×2 12V×2
15V 18V 24V
15V×2 18V×2 24V×2 |
| ALET24-22B |
19 |
0.5～0.6VA |
 |
 |

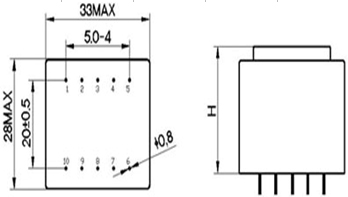

ALET28-33A |
●UL94V-0 flame retardant material
●Vacuum encapsulated
●Shockproof moisture proof and high dielectric strength |
●Household electric appliance
●Instruments and meters
●Traco power |
15 |
0.5～0.6VA |
115V
220V
230V |
6V 9V 12V
6V×2 9V×2 12V×2
15V 18V 24V
15V×2 18V×2 24V×2
|
| ALET28-33B |
24 |
1.5～1.9VA |
| ALET28-33C |
34.8 |
2.6～3.2VA |
 |
 |

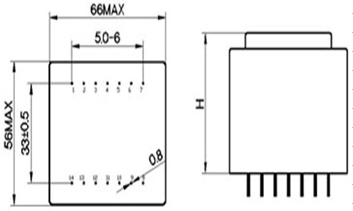

ALET56-66C |
●UL94V-0 flame retardant material
●Vacuum encapsulated
●Shockproof moisture proof and high dielectric strength |
●Household electric appliance
●Instruments and meters
●Traco power |
41 |
16～20VA |
115V
220V
230V |
6V 9V 12V
6V×2 9V×2 12V×2
15V 18V 24V
15V×2 18V×2 24V×2
|
 |
 |
ALET35-45A |
●UL94V-0 flame retardant material
●Vacuum encapsulated
●Shockproof moisture proof and high dielectric strength |
●Household electric appliance
●Instruments and meters
●Traco power |
24 |
6VA |
115V
220V
230V |
6V 9V 12V
6V×2 9V×2 12V×2
15V 18V 24V
15V×2 18V×2 24V×2
|
| ALET35-45B |
34 |
10VA |
 |
 |

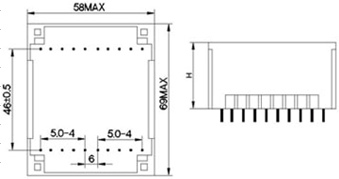

ALET46-58A |
●UL94V-0 flame retardant material
●Vacuum encapsulated
●Shockproof moisture proof and high dielectric strength |
●Household electric appliance
●Instruments and meters
●Traco power |
29 |
18VA |
115V
220V
230V |
6V 9V 12V
6V×2 9V×2 12V×2
15V 18V 24V
15V×2 18V×2 24V×2
|
| ALET46-58B |
36 |
30VA |
