| 高频变压器 |
| 元件图片 |

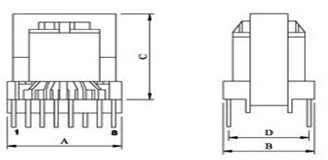

结构图 |
元件型号 |
外形尺寸(mm) |
电气参数(典型值) |
| 长 |
宽 |
高 |
脚距 |
电感(mH) |
最大电阻(Ω) |
电介质强度 |
|
 |
ALHF-EE16 |
18 |
15.68 |
14.65 |
11.3 |
3.11mH |
7.874 |
AC 2KV50Hz 5mA |
| ALHF-EE20 |
20.7 |
20.25 |
15.61 |
15.47 |
7mH |
10.5 |
AC 2KV50Hz 5mA |
| ALHF-EE25 |
26.02 |
17.9 |
20.46 |
12.6 |
9.841mH |
5.365 |
AC 2KV50Hz 5mA |
| ALHF-EE26 |
26.06 |
24.09 |
17.4 |
20 |
2.216mH |
3.289 |
AC 2KV50Hz 5mA |
| ALHF-EE30 |
30.6 |
32.03 |
21.7 |
25.1 |
89.9μH |
0.21 |
AC 2KV50Hz 5mA |
|
 |
ALHF-EC28 |
29 |
27 |
38 |
22.5±0.3 |
27.48mH |
2 |
AC 3KV 50Hz 5mA |
| ALHF-EC35 |
38 |
31 |
44 |
22.5±0.3 |
480μH |
0.35 |
AC 3KV 50Hz 5mA |
| ALHF-EC39 |
41 |
31.5 |
48 |
25±0.3 |
1.1mH±8% |
0.38 |
AC 3KV 50Hz 5mA |
| ALHF-EC40 |
43 |
33 |
49 |
25±0.2 |
1.77μH |
1 |
AC 3KV 50Hz 5mA |
| ALHF-EC42 |
44 |
31 |
48 |
25±0.3 |
1.8mH±8% |
1.1 |
AC 3KV 50Hz 5mA |
| ALHF-EC49 |
54 |
38 |
60 |
33.0±0.3 |
540μH |
0.32 |
AC 3KV 50Hz 5mA |
|
 |
ALHF-EE6.3 |
8 |
10 |
7 |
2.5±0.2 |
L>0.84mH |
1.6 |
AC 1KV 50Hz 5mA |
| Ls<0.79mH |
|
| ALHF-EE8.3 |
12.5 |
10.2 |
7.4 |
3.7±0.2 |
L(3-1)>3.15mH |
1.55 |
| 12.5 |
10.2 |
7.4 |
3.7±0.2 |
L(3-1) >0.92mH |
0.85 |
| ALHF-EE10 |
11 |
7 |
10 |
6.5 |
1.1mH |
1.2 |
| 417μH |
0.4 |
| ALHF-EE13 |
14 |
8.5 |
14 |
8.5 |
53mH |
3.8 |
| 3.86μH |
0.1 |
| ALHF-EE16 |
17 |
13 |
16 |
9 |
1.05mH |
4.2 |
AC 1.2KV 50Hz 5mA |
| 16.5μH |
0.2 |
| ALHF-EE19 |
20 |
11.4 |
18 |
11.2 |
1.84mH |
1.5 |
AC 1.5KV 50Hz 5mA |
| 115μH |
0.3 |
| ALHF-EE25 |
27 |
18 |
21.5 |
12.3 |
2.3mH |
3.8 |
| 2.9μH |
0.11 |
| ALHF-EI28 |
29 |
24 |
23 |
12.5 |
143.5mH |
3.8 |
AC 1.8KV 50Hz 5mA |
| 58.8μH |
0.136 |
| ALHF-EI33 |
34 |
28 |
30 |
22.4 |
35.36mH |
2.4 |
| 5.12μH |
0.6 |
| ALHF-EI35 |
36 |
29 |
32 |
20 |
13.8mH |
0.2 |
| 7μH |
3.25 |
| ALHF-EI41 |
42 |
29 |
37 |
22 |
16mH |
2.5 |
| 110μH |
0.1 |
|
| 注明：以上仅列部分产品，可根据客户需求研发生产。 |
|
